DK VALVE

Butterfly check valve

Price: Contact

  • Model:
  • Trademark: DK VALVE
  • Origin: Korea
  • Butterfly check valve

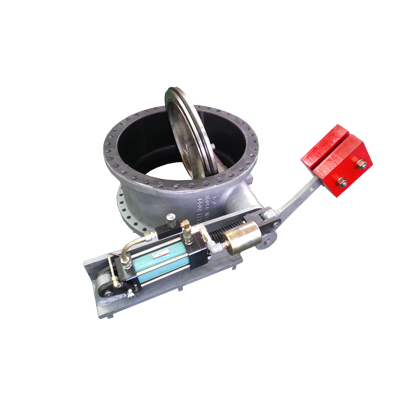

    A butterfly check valve with counter weight and hydraulic cylinder is very reliable as it can regulate the closing time of the valve itself.
    This valve is applied in pipelines as a non-return device, with flow allowed in one direction only.
    The butterfly check valve with counter weight is double-eccentric type with a tilting disc, the counter weight lever will faciliate the anti-hammer device and
    the oil cylinder will slow down the closure movement, to reduce any slam with noise. With the damping system, the water hammer effect can be prevented
    effectively by reducing the damping time.
    The flow opens the valve in the desired direction, while back flow forces the valve to close.
    Full tightness is ensured by an elastomer-to-metal seat design and it can be easily replaced without dismantling the valve from the pipeline.

    Standard Specifications

    DESIGN

    ▪ In reference with
    ▪ AWWA C 504
    ▪ BS 5155
    ▪ JIS B 2064

    FACE-TO-FACE

    ▪ BS 5155 Short Type
    ▪ AWWA C 504 Short Type
    ▪ Others on request

    FLANGE STANDARD

    ▪ ASME B 16.5/16.47
    ▪ BS 4504 / EN 1092-1
    ▪ JIS B2220
    ▪ Others on request

    PRESSURE RATING

    ▪ AWWA C 504
    ▪ Class 25 / 75 / 150

    NOMINAL DIAMETER

    ▪ 8” to 120”
    ▪ DN 200 to 3000

    INSTALLATION OPTIONS

    ▪ Horizontal
    ▪ Vertical

    LINING OPTIONS

    ▪ Full rubber lined
    ▪ Rubber lined body only

    TESTING

    ▪ AWWA C 504

    Applicable Materials

    Body

    A126 CL.B, A536, A216 WCB

    Disc

    A536, A216 WCB, A351 CF8 / CF8M, B148 C95800

    Austenitic Stainless Steel

    A351 CF8 / CF8M / CF3 / CF3M

    Body Seat

    A276 304 / 316, B148 C95800, NBR, EPDM

    Disc Seat

    A276 304 / 316, B148 C95800, NBR, EPDM

    Liner

    Natural Rubber, NBR, EPDM
