DK VALVE

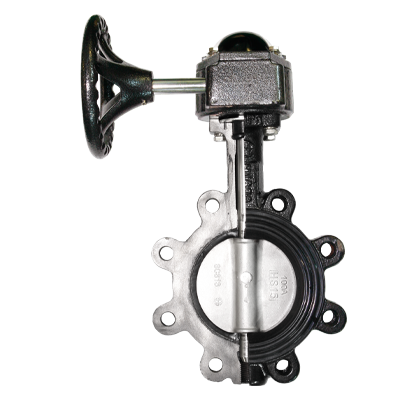

Catridged seat butterfly valve

Price: Contact

  • Model:
  • Trademark: DK VALVE
  • Origin: Korea
  • Catridged seat butterfly valve

    Cartridge Design Seat

    Elastomer is supported by hard phenolic backing which eliminates seat shifting during installation.
    Seat to disc seal is independent of flange support and capable of full rated dead end service.
    Static seat design allows disc to sweep into seat for lower and more consistent torque.
    Smaller mass of elastomer minimizes seat swell.

    Standard Specifications

    DESIGN

    ▪ API 609 Cat.A
    ▪ ISO 5752 Sr.20
    ▪ MSS SP 67

    FACE-TO-FACE

    ▪ API 609 Cat. A
    ▪ Wafer and Lugged

    FLANGE STANDARD

    ▪ ASME B 16.5
    ▪ BS 4504 / EN 1092-1
    ▪ JIS B2220
    ▪ Others on request

    PRESSURE RATING

    ▪ 20 Bar
    ▪ 285 PSI

    NOMINAL DIAMETER

    ▪ 2” to 24”
    ▪ DN 50 to 600

    TESTING

    ▪ Shell : 31 Bar or 450 PSI
    ▪ Closure : 23 Bar or 325 PSI

    Applicable Materials

    Cast Iron A126 CL.B
    Ductile Iron A395 Gr.60-40-18, A536 Gr.65-45-12
    Austenitic Stainless Steel A351 CF8 / CF8M / CF3 / CF3M
    Duplex Stainless Steel A890 4A / 5A / 6A, A995 4A / 5A / 6A
    Special Alloy Inconel® 625(UNS N06625), 254SMO®(UNS S31254)
    Monel® K400 / 500 (UNS N04400 / N05500)
    Liner Nitrile Rubber with Phenolic Backing
    EPDM Rubber with Phenolic Backing
