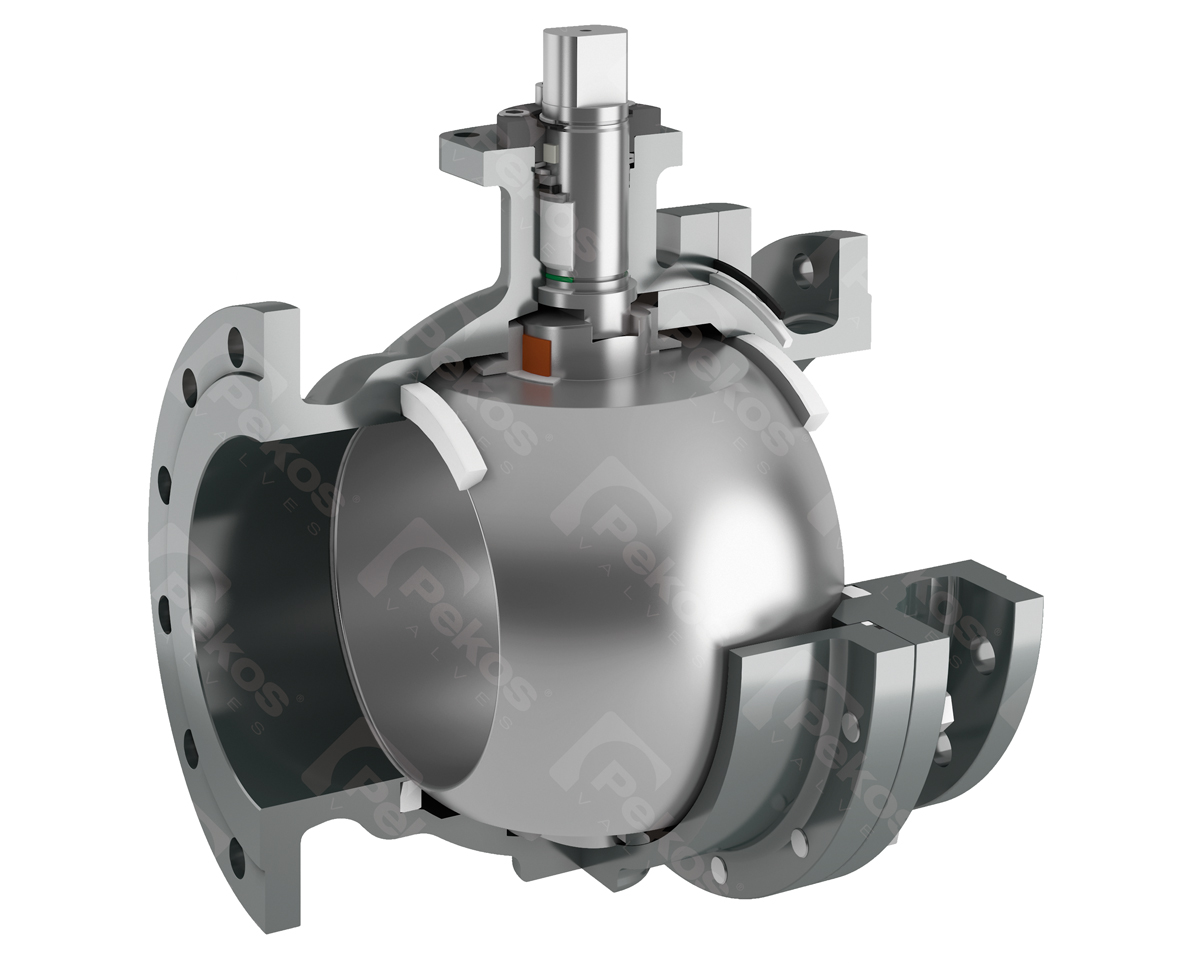

GUIDED  FULL BORE (FB) CL300 / 6-12''

ANSI

General features

• Split body
• Full bore
• Soft seat
• Bidirectional
• Antistatic design
• Anti blow out stem
• Autoadjustable packing
• Self-relief seats
• Fire safe
• Low emission design

Standards

Designs:

   ANSI B16.34
   ISO17292
   API6D
• Face to face ANSI B16.10
• Flanges ANSI B16.5, B16.47
• Top flange ISO 5211
• Material according NACE MR-0175
• Testing API 598, ISO 5208
• API 6D upon request
• Fire safe API 607, API 6FA, ISO 10497
